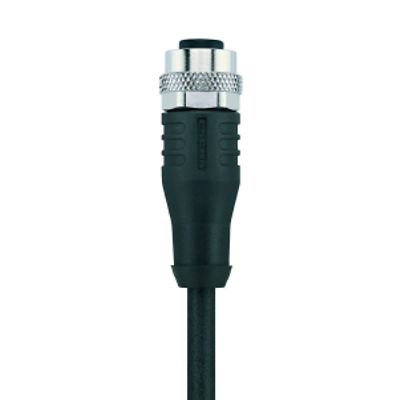

AVENTICS™ Round plug connectors with cable, Series CON-RD R412026784

Type

Round plug connectors

Max. operating voltage AC

48 V DC

Max. operating voltage DC

48 V AC

Electrical connection 1, type

Socket

Electrical connection 1, thread size

M12x1

Electrical connection 1, number of poles

5-pin

Electrical connection 1, coding

A-coded

Cable exit 1

straight

Electrical connection 2, type

open cable ends

Shielding

shielded

Cable length

10 m

suitable for dynamic laying

suitable for dynamic laying

Min. bending radius

56 mm

Certificates

RoHS, UL (Underwriters Laboratories)

Protection class

IP65, IP67, IP68

Min. ambient temperature

-30 °C

Max. ambient temperature

90 °C

Connector standard

EN 61076-2-101

Max. current

4 A

Wire cross-section

0.34 mm²

Cable-Ø

5.6 mm

Delivery unit

1 piece

Housing material

Thermoplastic polyurethane (TPU)

Seal material

Fluorocaoutchouc

Material cable sheath

Polyurethane
