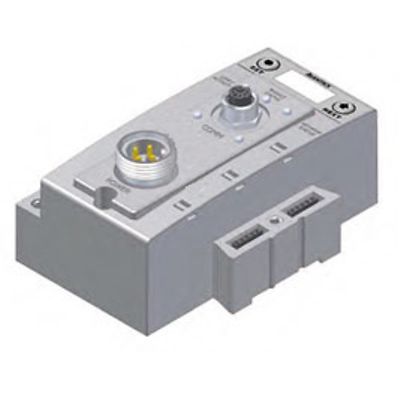

AVENTICS™ G3 Subbus module 240-241

Note

Power plug 7/8", 4-pin

Min. ambient temperature

-10 °C

Max. ambient temperature

50 °C

Max. number of valve positions

32

Operational voltage electronics

24 V DC

Electronics voltage tolerance

-10% / 10%

Current consumption electronics

0.03 A

Operating voltage, actuators

24 V DC

Total output for valves

4:00 AM

Protection class

IP65

Diagnosis

Undervoltage

I/O module extension max.

15

Electrical connection type

4-pin, 7/8″, Plug

Weight

0.235 kg

Housing material

polyethyleneterephthalate
