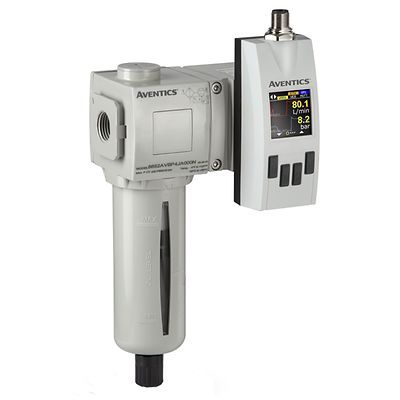

AVENTICS™ AF2 series flow rate sensor, Ethernet 8652AVBP4JA001N

Note

Integrated web server, 48 VDC connection via Power over Ethernet, Without mounting

Frame size

652

Switching principle

Flow measuring principle: calorimetric

Protocol

Ethernet, TCP/IP, OPC UA, MQTT

Nominal flow Qn min., standard

8 l/min

Nominal flow Qn max., standard

1630 l/min

Nominal flow Qn min., extended

1630 l/min

Nominal flow Qn max., extended

2445 l/min

Compressed air connection

1/2 NPT

Certificates

CE declaration of conformity, RoHS, UL (Underwriters Laboratories)

Min. working pressure

0 bar

Max. working pressure

16 bar

Min. ambient temperature

-20 °C

Max. ambient temperature

50 °C

Medium

Compressed air, Argon, Nitrogen, Carbon dioxide

Filter porosity

5 µm

Display

OLED

Flow display unit

l/sec, l/min, m³/min, m³/h, ft³/s, m³/min

Pressure display unit

bar, psi

Temperature display unit

°C, °F

Electrical connection 2, type

Plug

Electrical connection 2, thread size

M12x1

Electrical connection 2, number of poles

8-pin

Electrical connection 2, coding

X-coded

Output signal

OPC UA, MQTT, Integrated web server
