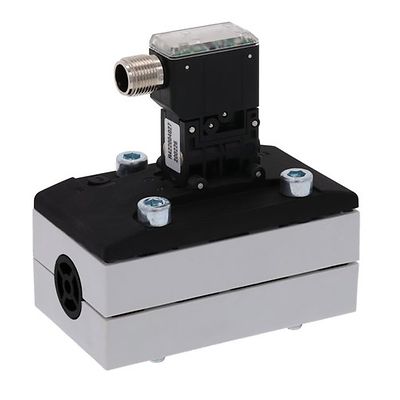

AVENTICS™ 5/2-directional valve, Series 581, size 2 5812113720

Activation

Electrically

Nominal flow Qn

2700 l/min

Switching principle

5/2, with spring return

Compressed air connection output

Base plate ISO 5599-1

Min. working pressure

-0.95 bar

Max. working pressure

10 bar

Operational voltage DC

24 V

Voltage tolerance DC

-10% / +10%

Manual override

without detent

Electrical connection type

Plug

Electrical connection size

M12

Electrical connection number of poles

4-pin

Actuating control

Single Solenoid

Sealing principle

Soft seal

Pilot

External

Standards

ISO 5599-1

Pilot valve width

22 mm

Valve type

Spool valve

Blocking principle

Single base plate principle

Connection type

Plate connection

Return

With spring return

Compressed air connection input

Base plate ISO 5599-1

Compressed air connection, exhaust

Base plate ISO 5599-1

Compressed air connection pilot exhaust

M5

Power consumption DC

0.35 W
