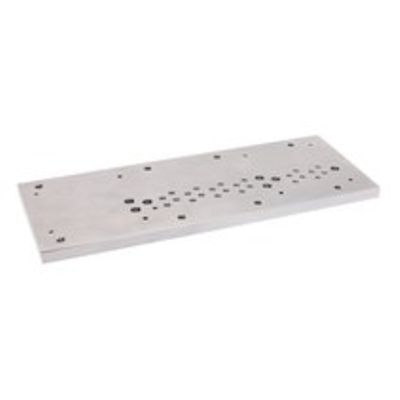

AVENTICS™ Transition plate R412026481

Type

Transition plate

Type

Internal assembly

Compressed air connection 1

G 3/8

Compressed air connection 2 / 4

G 1/4

Port 3 / 5

G 3/8

Compressed air connection 12

G 1/8

Compressed air connection 14

M5

Scope of delivery

Transition plate, sealing kit, mounting screws, sealing tape

Working pressure min.

-0.95 bar

Working pressure max

10 bar

Min. ambient temperature

-10 °C

Max. ambient temperature

60 °C

Min. medium temperature

-10 °C

Max. medium temperature

60 °C

Medium

Compressed air

Max. number of valve positions

4

Housing material

Aluminum
