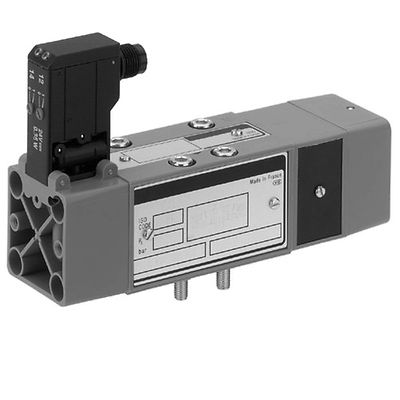

AVENTICS™ 5/2-directional valve, Series IS12, size 1 0820024462

Activation

Electrically

Nominal flow Qn

1060 l/min

Compressed air connection output

Base plate ISO 5599-1

Min. working pressure

-0.9 bar

Max. working pressure

10 bar

Manual override

with detent

Electrical connection type

Plug

Electrical connection size

EN 175301-803, form A

Actuating control

Double Solenoid

Sealing principle

Soft seal

Pilot

External

ATEX

ATEX optional

Standards

ISO 5599-1

Pilot valve width

30 mm

Valve type

Spool valve, positive overlapping

Blocking principle

Single base plate principle

Connection type

Plate connection

Compressed air connection input

Base plate ISO 5599-1

Compressed air connection, exhaust

Base plate ISO 5599-1

Compressed air connection pilot input

Base plate ISO 5599-1

Compressed air connection pilot exhaust

Base plate ISO 5599-1

Basic valve equipment

Basic valve without coil

Frame size

ISO 1

Min. control pressure

1 bar

Max. control pressure

10 bar
