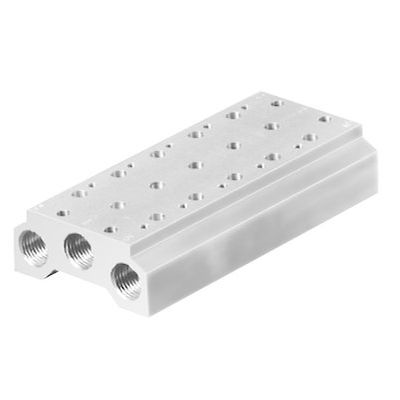

AVENTICS™ Base plate, Series 335 35500329
AVENTICS™ Base plate, Series 335 35500329
닫기
경고
이 작업을 수행하면 견적서가 무효화될 수 있습니다. 계속 진행하시겠습니까?
진행하면 쇼핑 카트를 표준 주문으로 변환하여 변경할 수 있습니다.
진행
취소
닫기
경고
이 작업을 수행하면 견적서가 무효화될 수 있습니다. 계속 진행하시겠습니까?
진행하면 쇼핑 카트를 표준 주문으로 변환하여 변경할 수 있습니다.
진행
취소
작업 공간에 추가
데이터시트 보기
제품 개요
사양
문서 및 도면
사양
전체 사양 다운로드
Type
Base plate
Compressed air connection input
G 1/8
Compressed air connection output
M5
Port exhaust
G 1/8
Scope of delivery
The manifold base plates are supplied with screws and seals for valve assembly, as well as 3 plugs for ports 1/3/5.
Working pressure min.
0 bar
Working pressure max
8 bar
Min. ambient temperature
5 °C
Max. ambient temperature
50 °C
Min. medium temperature
5 °C
Max. medium temperature
50 °C
Medium
Compressed air, Neutral gases
Max. particle size
50 µm
Oil content of compressed air min.
0 mg/m³
Oil content of compressed air max.
5 mg/m³
Max. number of valve positions
7
Weight
0.25 kg
Material base plate
Aluminum
Seal material
caoutchouc/butadiene caoutchouc
