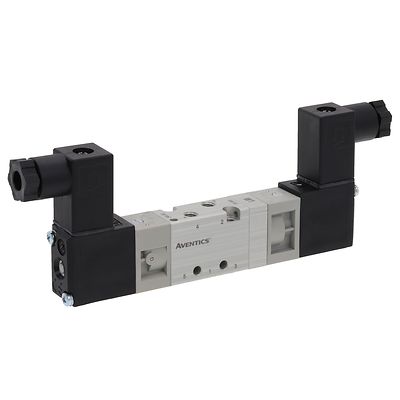

AVENTICS™ 5/2-directional valve, Series 519 51900007

Activation

Electrically

Nominal flow Qn

175 l/min

Switching principle

5/2

Compressed air connection output

M5

Working pressure min.

1.5 bar

Working pressure max

8 bar

Operational voltage AC at 50 Hz

110 V

Manual override

without detent

Electrical connection type

Plug

Electrical connection size

EN 175301-803, form C

Actuating control

Double Solenoid

Sealing principle

Soft Seal

Pilot

Internal

Pilot valve width

15 mm

Valve type

Spool valve

Connection type

Pipe connection

Control pressure min.

1.5 bar

Control pressure max.

8 bar

Min. ambient temperature

5 °C

Max. ambient temperature

50 °C

Medium

Compressed air

Max. particle size

5 µm

Oil content of compressed air min.

0 mg/m³

Oil content of compressed air max.

5 mg/m³

Compressed air connection input

M5
