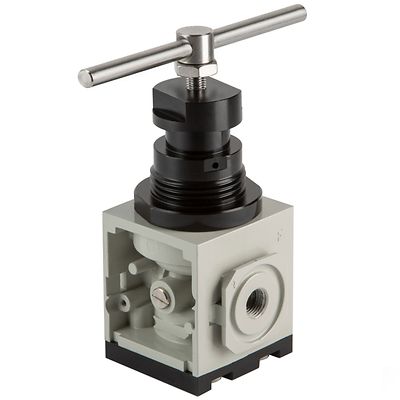

AVENTICS™ Pressure regulator, Series 646 8646ARH24NA00H0

Note

Complies with standards for railway applications

Function

high flow, inline ported

Parts

Pressure regulator

Adjustment options

T handle

Pressure gauge

Without pressure gauge, with transition plate

Mounting orientation

Any

Port

1/2 NPT

Compressed air connection standard

according to ISO 228-1

Nominal flow Qn

7000 l/min

Regulation range min.

0.5 bar

Regulation range max.

10 bar

Working pressure min.

1 bar

Working pressure max

16 bar

Min. ambient temperature

-40 °C

Max. ambient temperature

70 °C

Medium

Compressed air

Min. medium temperature

-40 °C

Max. medium temperature

70 °C

Weight

0.272 kg

Housing material

Aluminum

Seal material

Acrylonitrile butadiene rubber
