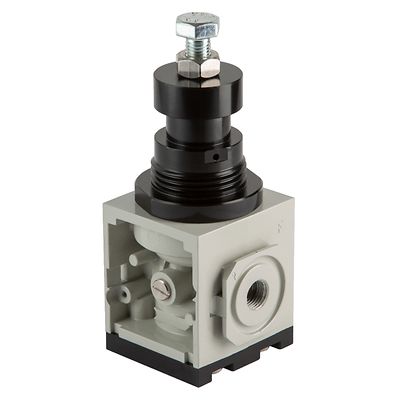

AVENTICS™ Pressure regulator, Series 646 8646ARS24NA00H0

Note

Complies with standards for railway applications

Function

high flow, inline ported

Parts

Pressure regulator

Adjustment options

adjustment screw

Pressure gauge

Without pressure gauge, with transition plate

Mounting orientation

Any

Port

1/2 NPT

Nominal flow Qn

7000 l/min

Regulation range min.

0.5 bar

Regulation range max.

10 bar

Working pressure min.

1 bar

Working pressure max

16 bar

Min. ambient temperature

-40 °C

Max. ambient temperature

70 °C

Medium

Compressed air

Min. medium temperature

-40 °C

Max. medium temperature

70 °C

Weight

0.272 kg

Housing material

Aluminum

Seal material

Acrylonitrile butadiene rubber
