AVENTICS™ Series BCP ASND11-4-1

Bellows

double

Type

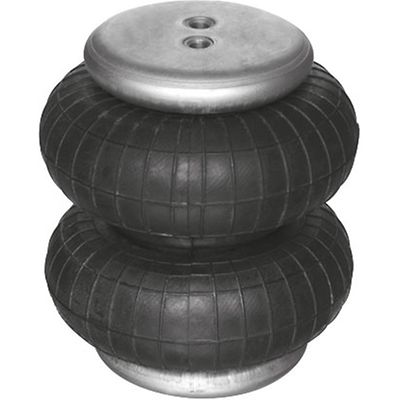

Bellow actuator with cover

Functional principle

Single-acting, retracted without pressure

Compressed air connection

1/4 NPT

Cover diameter

108 mm

Permissible angle of tilt max.

20 °

Max. effective stroke

107.95 mm

Min. radial installation space

180 mm

Installation height, min.

72 mm

Installation height, max.

180 mm

Force min.

3500 N

Force max.

8700 N

Working pressure min.

0 bar

Working pressure max

8 bar

Min. ambient temperature

-40 °C

Max. ambient temperature

70 °C

Medium

Compressed air

Reduced service life at a temperature greater than

50 °C

Pressure for determining forces

6 bar

Weight

1.5 kg

Material bellow

Natural rubber

Material front cover

Steel, chrome-plated

Surface cover

galvanized
