AVENTICS™ Series BCP ASND51-7-1

Bellows

double

Type

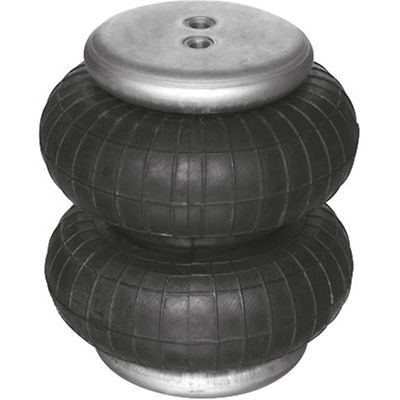

Bellow actuator with cover

Functional principle

Single-acting, retracted without pressure

Compressed air connection

3/4 NPT

Cover diameter

228 mm

Permissible angle of tilt max.

20 °

Max. effective stroke

189.99 mm

Min. radial installation space

340 mm

Installation height, min.

75 mm

Installation height, max.

265 mm

Force min.

17000 N

Force max.

35400 N

Working pressure min.

0 bar

Working pressure max

8 bar

Min. ambient temperature

-40 °C

Max. ambient temperature

70 °C

Medium

Compressed air

Reduced service life at a temperature greater than

50 °C

Pressure for determining forces

6 bar

Weight

4.8 kg

Material bellow

Natural rubber

Material front cover

Steel, chrome-plated

Surface cover

galvanized
