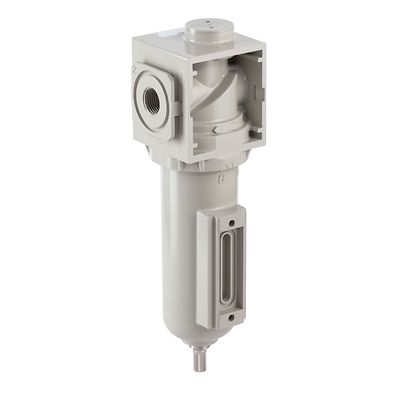

AVENTICS™ Filter, Series 646 G646AFDK4JA000Q

Parts

Filter

Port

G 1/2

Filter porosity

0.3 µm

Nominal flow Qn

870 l/min

Condensate drain

Manual

Working pressure min.

0 bar

Working pressure max

16 bar

Min. ambient temperature

-40 °C

Max. ambient temperature

70 °C

Medium

Compressed air

Weight

0.509 kg

Housing material

Aluminum

Seal material

Nitrile butadiene rubber

Material filter insert

Borosilicate glass fiber, Polyester

Material condensate drain

Stainless Steel
