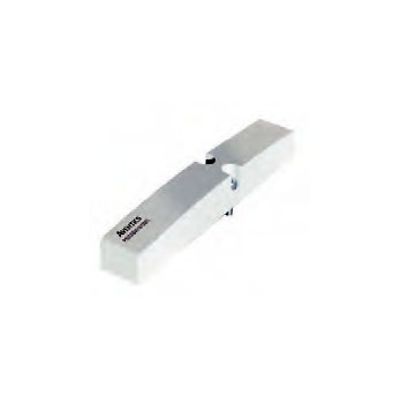

AVENTICS™ Blanking plate, series 502 P502AB431813001

Scope of delivery

Blind plate, sealing kit, mounting screws

Working pressure min.

-0.95 bar

Working pressure max

10 bar

Min. ambient temperature

-10 °C

Max. ambient temperature

50 °C

Min. medium temperature

-10 °C

Max. medium temperature

50 °C

Medium

Compressed air

Max. number of valve positions

1

Protection class

IP65

Weight

0.058 kg

Housing material

Die-cast aluminum

Seal material

Acrylonitrile butadiene rubber

Screws material

Galvanized Steel
