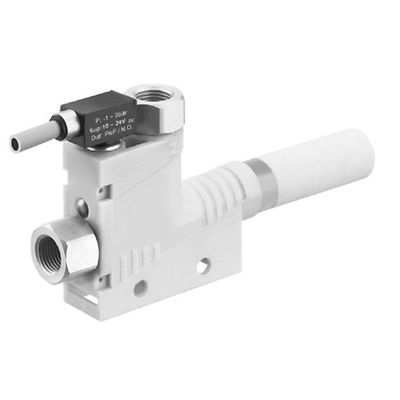

AVENTICS™ Ejector, Series EBS R412007484

Activation

Electrically

Type

Ejector

Version

pneumatic control, T-design

with silencer

with silencer

Nozzle Ø

2.5 mm

vacuum switch

electronic, non-adjustable

Working pressure min.

3 bar

Working pressure max

6 bar

Min. ambient temperature

0 °C

Max. ambient temperature

50 °C

Min. medium temperature

0 °C

Max. medium temperature

50 °C

Medium

Compressed air

Oil content of compressed air min.

0 mg/m³

Oil content of compressed air max.

1 mg/m³

Max. particle size

5 µm

Compressed air connection

G 1/4

Vacuum connection+

G 3/8

Max. suction capacity

218 l/min

Air consumption at p.opt.

311 l/min

Max. vacuum level at p.opt

82 %

Sound pressure level intake effect

75 dB

Sound pressure level intake effect

78 dB

Protection against overpressure (max.)

5 bar

Display

LED
