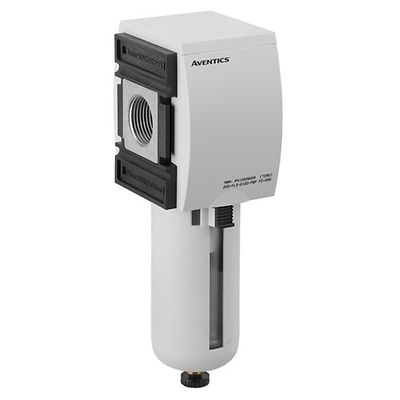

AVENTICS™ Filter, Series AS5-FLS R412009006

Parts

Filter

Reservoir

reservoir, metal, with inspection glass

Port

G 3/4

Filter porosity

5 µm

Nominal flow Qn

7800 l/min

Condensate drain

semi-automatic, open without pressure

Working pressure min.

1.5 bar

Working pressure max

16 bar

Min. ambient temperature

-10 °C

Max. ambient temperature

50 °C

Medium

Compressed air, Neutral gases

Max. achievable compressed air class acc. to ISO 8573-1:2010

6 : 7 : -

Filter reservoir volume

87 cm³

Filter element

exchangeable

Weight

1.21 kg

inspection glass

with window

Mounting orientation

vertical

Type

Can be assembled into blocks

Housing material

Polyamide

Material front plate

Acrylonitrile butadiene styrene

Seal material

Acrylonitrile butadiene rubber

Material threaded bushing

Die cast zinc

Material reservoir

Die cast zinc

Material filter insert

Polyethylene
