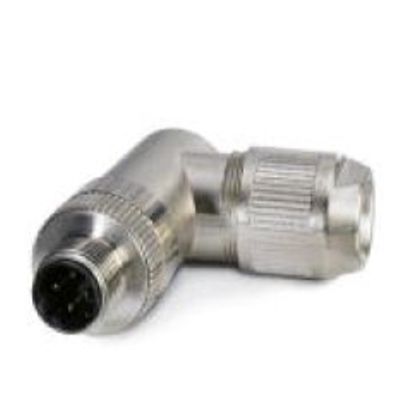

AVENTICS™ Round plug connector, Series CON-RD R412026802

Type

Round plug connectors

Connection type

Insulation-piercing terminal connection

min. suitable cable Ø

4 mm

max. suitable cable Ø

8 mm

Protocol

Profinet, EtherNet/IP, EtherCAT, POWERLINK

Shielding

EN 61076-2-101, shielded

Certificates

RoHS, UL (Underwriters Laboratories)

Min. ambient temperature

-40 °C

Max. ambient temperature

85 °C

Max. current

1.75 A

Number of wires

4

Protection class

IP67

Operational voltage

48 V AC/DC

Electrical connection 1, type

Plug

Electrical connection 1, thread size

M12x1

Electrical connection 1, number of poles

4-pin

Electrical connection 1, coding

D-coded

Cable exit

angled

Weight

0.047 kg

Housing material

Die cast zinc

Seal material

Chloroprene rubber
