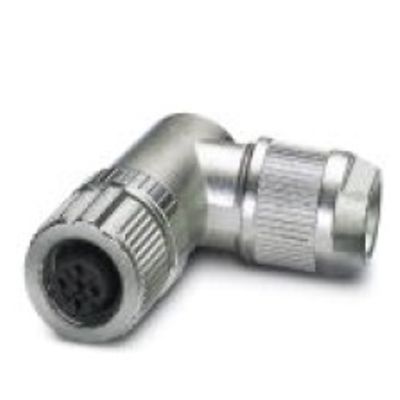

AVENTICS™ Round plug connector, Series CON-RD R412026806

Type

Round plug connectors

Connection type

Insulation-piercing terminal connection

min. suitable cable Ø

4 mm

max. suitable cable Ø

8 mm

Protocol

CANopen, DeviceNet

Shielding

EN 61076-2-101, shielded

Certificates

RoHS, UL (Underwriters Laboratories)

Min. ambient temperature

-40 °C

Max. ambient temperature

85 °C

Max. current

4:00 AM

Protection class

IP67

Operational voltage

48 V AC/DC

Electrical connection 1, type

Socket

Electrical connection 1, thread size

M12x1

Electrical connection 1, number of poles

5-pin

Electrical connection 1, coding

A-coded

Cable exit

angled

Weight

0.044 kg

Housing material

Die cast zinc

Seal material

Acrylonitrile butadiene rubber
