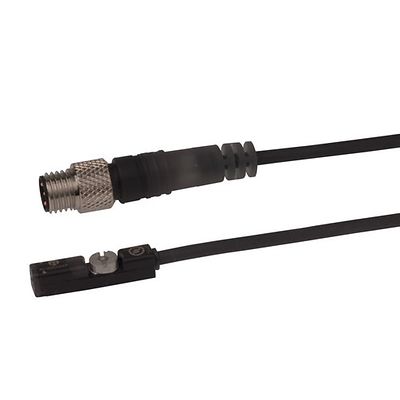

AVENTICS™ Sensor, Series ST6 R412027173

Direct mounting for series

PRA, PRE, CCI, KPZ, SSI, GPC, CVI

Indirect mounting for series

TRB, ITS, CCL-IS, MNI, CSL-RD, RPC, ICS-D2, ICM, KHZ, TRR

Slot width

6 mm T-slot

Cable

with cable

Certificates

ATEX, CE declaration of conformity, cULus, RoHS, UL (Underwriters Laboratories)

Protection class

IP67

Min. ambient temperature

-25 °C

Max. ambient temperature

80 °C

Max. switching frequency

1000 Hz

Electrical connection 2, type

Plug, M12x1

Electrical connection 2, number of poles

2-pin

Operating voltage DC, max.

8.2 V DC

Shock resistance

30 g / 11 ms

Vibration resistance

10 - 55 Hz, 1 mm

Cable length L

0.3 m

Housing material

Polyamide fiber-glass reinforced

Material cable sheath

Polyurethane

Material locking screw

Stainless Steel

Material cable sheath

Polyurethane

Material locking screw

Stainless Steel
