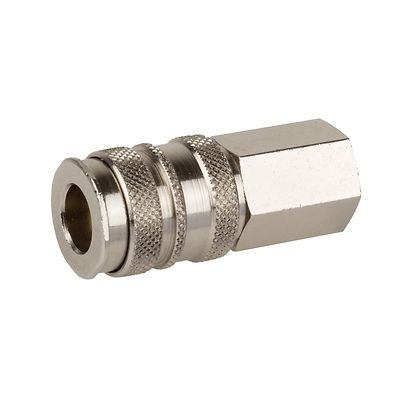

AVENTICS™ Lock coupling, Series CP1 R412028880

Port D

NW 7,8

Port G

G 3/8

Compressed air connection type

Internal thread

Nominal width NW

7.8 mm

Nominal flow Qn

2300 l/min

Min. working pressure

0 bar

Max. working pressure

16 bar

Min. ambient temperature

-10 °C

Max. ambient temperature

90 °C

Min. medium temperature

-10 °C

Max. medium temperature

90 °C

Medium

Compressed air

Delivery unit

1 piece

Weight per piece

0.095 kg

Housing material

Brass

Material release bushing

Brass

Seal material

Acrylonitrile butadiene rubber

Material connector

Brass
