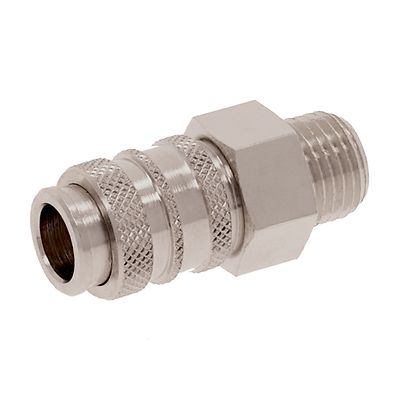

AVENTICS™ Lock coupling, Series CP1 R412028881

Silicon

contains silicon

Port D

NW 2,7

Port G

M5

Compressed air connection type

External thread

Nominal width NW

2.7 mm

Nominal flow Qn

165 l/min

Min. working pressure

0 bar

Max. working pressure

35 bar

Min. ambient temperature

-20 °C

Max. ambient temperature

100 °C

Min. medium temperature

-20 °C

Max. medium temperature

100 °C

Medium

Compressed air

Delivery unit

2 piece

Weight per piece

0.009 kg

Housing material

Brass

Material release bushing

Brass

Seal material

Acrylonitrile butadiene rubber

Material connector

Brass
