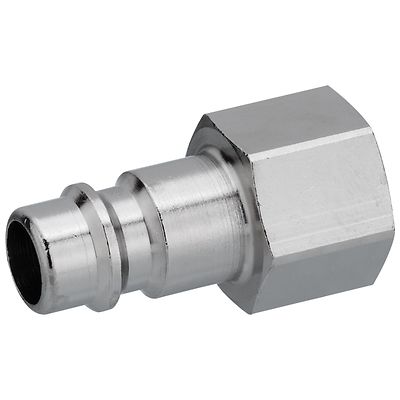

AVENTICS™ Coupling plug with internal thread R412028883

Silicon

silicone-free

Port D

NW 7,2

Port G

G 1/4

Compressed air connection type

Coupling plug

Nominal width NW

7.2 mm

Min. working pressure

0 bar

Max. working pressure

16 bar

Min. ambient temperature

-10 °C

Max. ambient temperature

90 °C

Min. medium temperature

-10 °C

Max. medium temperature

90 °C

Medium

Compressed air

Delivery unit

10 piece

Weight per piece

0.025 kg

Housing material

Brass
