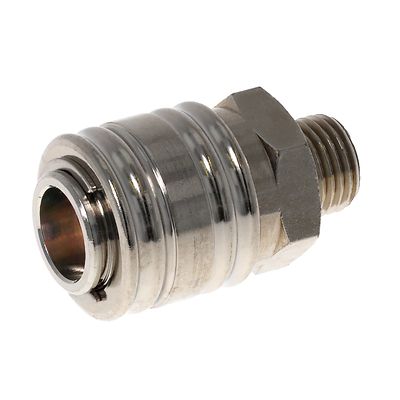

AVENTICS™ Lock coupling, Series CP1 R412028885

Silicon

contains silicon

Port D

NW 7,2

Port G

G 3/8

Compressed air connection type

External thread

Nominal width NW

7.2 mm

Nominal flow Qn

1100 l/min

Min. working pressure

0 bar

Max. working pressure

35 bar

Min. ambient temperature

-20 °C

Max. ambient temperature

100 °C

Min. medium temperature

-20 °C

Max. medium temperature

100 °C

Medium

Compressed air

Delivery unit

2 piece

Weight per piece

0.076 kg

Housing material

Brass

Material release bushing

Brass

Seal material

Acrylonitrile butadiene rubber

Material connector

Brass
