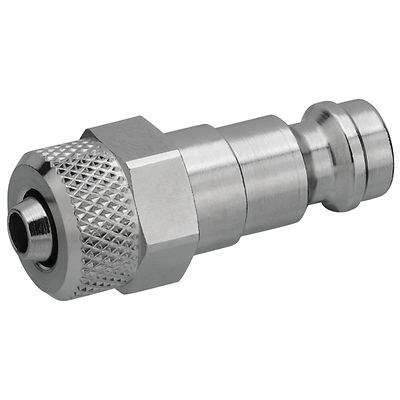

AVENTICS™ Coupling plug with tube nut R412028886

Port D

NW 5

Port G

Ø 6

Compressed air connection type

Coupling plug

Nominal width NW

5 mm

Min. working pressure

0 bar

Max. working pressure

16 bar

Min. ambient temperature

-10 °C

Max. ambient temperature

90 °C

Min. medium temperature

-10 °C

Max. medium temperature

90 °C

Medium

Compressed air

Delivery unit

10 piece

Weight per piece

0.018 kg

Housing material

Brass
