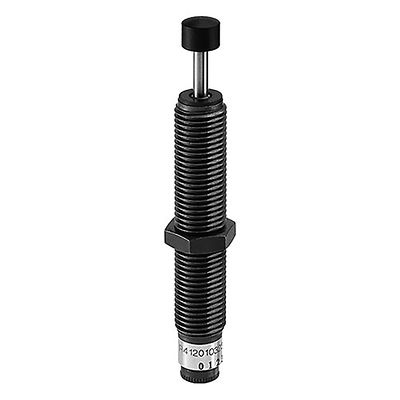

AVENTICS™ Industrial shock absorber, Series SA1-MA R412028892

Type

SA1-MA

Mounting thread

M27x2

Stroke

40 mm

Max. energy absorption/stroke

390 Nm

Max. energy absorption/hour

175500 Nm

Cushioning

adjustable

Medium

Oil

Min. ambient temperature

-20 °C

Max. ambient temperature

80 °C

Effective mass me min.

38 kg

Effective mass me max.

18000 kg

Min. return spring force

11 N

Max. return spring force

20 N

Min. impact speed

0.1 m/s

Max. impact speed

6 m/s

Mounting

Lock nut

Weight

0.29 kg

Material cylinder tube

Steel, chrome-plated

Material piston rod

Stainless Steel

Material stop

Steel, chrome-plated

Material lock nut

Steel, chrome-plated

Scraper material

Polyurethane
