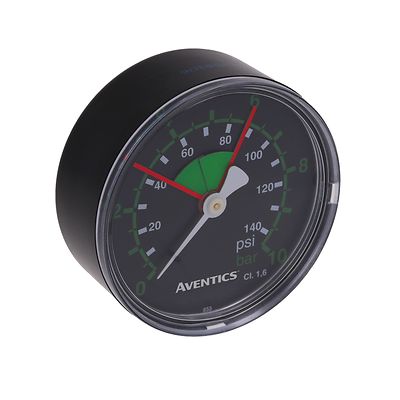

AVENTICS™ Pressure gauge, Series PG1-PAN-ADJ R414010394

Pressure gauge version

Bourdon tube pressure gauge, Back port, with adjustable work area display

Standardization

EN 837-1

Class

1,6

Compressed air connection

G 1/4

Nominal diameter

63 mm

Scale value

0.1

Range of application min.

0 bar

Range of application max.

2 bar

Display range min.

0 bar

Display range max.

2.5 bar

Working pressure min.

0 bar

Working pressure max

10 bar

Min. ambient temperature

-40 °C

Max. ambient temperature

60 °C

Medium

Compressed air

Background color

Black

Main scale unit (outside)

bar

Main scale color (outside)

Green

Secondary scale unit (inside)

psi

Secondary scale color (inside)

White

Work Area Display, Color

Red, Green

Pointer color

White

Weight

0.09 kg

Housing material

Acrylonitrile butadiene styrene

Material viewing window

Polystyrene
