AVENTICS-R414011831

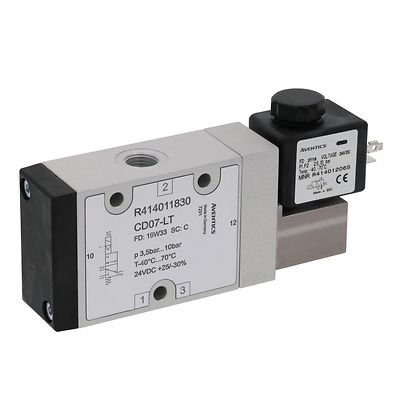

AVENTICS™ 3/2-directional valve, Series CD07-LT R414011831

선정 제품 설명

CD07-LT-3/2-NC-SR-110VDC-E-G014-RAIL

Activation
Electrically
Frame size
CD07-LT
Switching principle
3/2, with spring return
Valve function
NC
Actuating control
Single Solenoid
Manual override
without
Pilot
External
Nominal flow Qn
1200 l/min
Compressed air connection
G 1/4
Working pressure min.
3 bar
Working pressure max
10 bar
Operational↩voltage
110 V DC
Voltage tolerance DC
-30% / +25%
Electrical connection type
Plug
Electrical connection size
EN 175301-803, form A
Connector standard
EN 175301-803:2006
Protection class with connection
IP65
Reverse polarity protection
Protected against polarity reversal
Pilot valve width
30 mm
Duty cycle
100 %
Typ. switch-on time
80 ms
Typ. switch-off time
80 ms
Sealing principle
soft seal
Min. ambient temperature
-40 °C
Max. ambient temperature
70 °C

특징

  • 내구성 있는 디자인
  • 받침판 위에서 조립
  • 극한 외부 기온에 적합
  • 전압 변동에 저항
  • ATEX 버전 사용 가능
