AVENTICS-R414012066

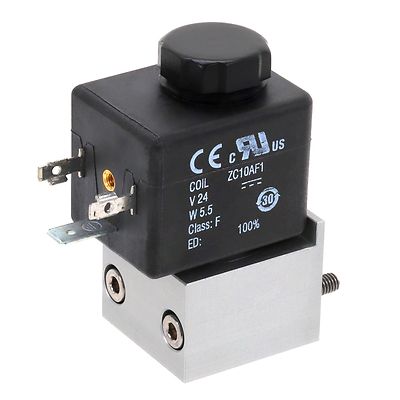

AVENTICS™ 3/2-directional valve, Series DP30-LT R414012066

선정 제품 설명

RAIL 3/2NC 1,3MM 10BAR 110VDC +25/-30%

Activation
Electrically
Frame size
DP30-LT
Switching principle
3/2, with spring return
Valve function
NC
Manual override
without
Nominal flow Qn
60 l/min
Compressed air connection
CNOMO
Working pressure min.
2.5 bar
Working pressure max
10 bar
Operational↩voltage
110 V DC
Voltage tolerance DC
-30% / +25%
Electrical connection type
Plug
Electrical connection size
EN 175301-803, form A
Protection class with connection
IP65
Reverse polarity protection
Protected against polarity reversal
Pilot valve width
30 mm
Duty cycle
100 %
Sealing principle
soft seal
Certificates
CE declaration of conformity, RoHS, UR (Underwriters Laboratories)
Min. ambient temperature
-40 °C
Max. ambient temperature
70 °C
Weight
0.2 kg
Housing material
Aluminum

특징

  • 다양한 연결 옵션 가능
  • 매니폴드 스트립에서 조립
  • 확장된 볼트 범위
  • ATEX 버전 사용 가능
