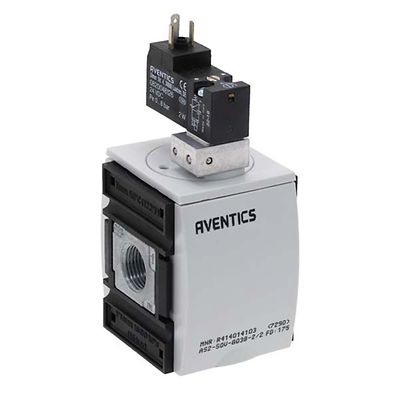

AVENTICS™ 2/2-directional valve, electrically operated, Series AS2-SOV R414014103

Activation

Electrically

Nominal flow Qn

2000 l/min

Version

NO

Compressed air connection

G 3/8

Working pressure min.

2.5 bar

Working pressure max

8 bar

DC operating voltage

24 V

Sealing principle

soft seal

Connection type

Pipe connection

Parts

2/2-directional valve

Can be assembled into blocks

Can be assembled into blocks

basic valve with electrical connector

Basic valve with pilot valve

Type

Poppet valve

Min. ambient temperature

-10 °C

Max. ambient temperature

50 °C

Medium

Compressed air, Neutral gases

Max. particle size

25 µm

Operating voltage

24 V DC

Power consumption DC

2 W

Connector standard

ISO 15217, form C

Protection class with connection

IP65

Reverse polarity protection

Protected against polarity reversal

Electrical connection 2, thread size

ISO 15217, form C

Weight

0.61 kg

Housing material

Polyamide
