AVENTICS-R414014311

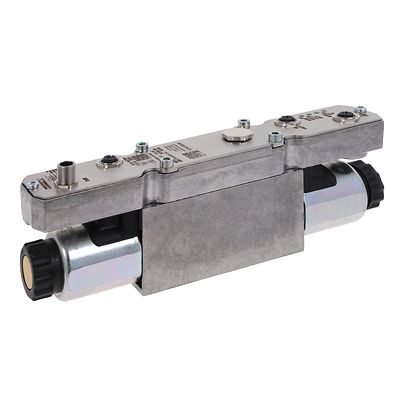

AVENTICS™ ED07 series proportional pressure regulator, EtherCAT R414014311

선정 제품 설명

ED07-000-100-ECAT-4M12X-EXT-420

Protocol
EtherCAT
Control
Directly controlled
Regulation range min.
0 bar
Regulation range max.
10 bar
Working pressure min.
0.5 bar
Working pressure max
12 bar
Hysteresis
< 0,03 bar
Medium
Compressed air
Nominal flow Qn
1300 l/min
Min. ambient temperature
5 °C
Max. ambient temperature
50 °C
Min. medium temperature
5 °C
Max. medium temperature
50 °C
DC operating voltage
24 V
Max. current consumption
1400 mA
Protection class
IP65
Permissible ripple
5%
Max. particle size
50 µm
Oil content of compressed air min.
0 mg/m³
Oil content of compressed air max.
1 mg/m³
Type
Poppet valve
Mounting orientation
α = 0 ... 90° ±β = 0 ... 90°
Certificates
CE declaration of conformity
Signal connection
input and output
Signal connection
Plug

특징

  • 견고한 포핏 밸브 기술
  • 고도로 제어된 정밀도와 역동성
  • 광범위한 응용 분야에 적합
  • 높은 유량
  • ED07 supports different types of connectivity from Analog Version to Fieldbus connection via EtherCAT
