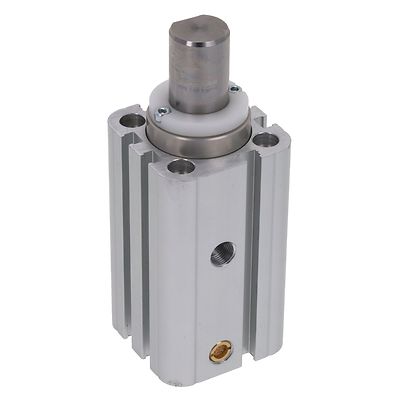

AVENTICS™ Compact cylinder, Series CCI-SC R452000631

Standards

Based on ISO 21287

Piston Ø

32 mm

Stroke

20 mm

Ports

G 1/8

Functional principle

Single-acting, extended without pressure

Cushioning

Elastic cushioning

Magnetic piston

Piston with magnet

Cylinder special features

Axle pivot version, non-rotating

Pressure for determining piston forces

6,3 bar

Retracting piston force

309 N

Extracting piston force

507 N

Min. ambient temperature

-20 °C

Max. ambient temperature

80 °C

Working pressure min.

2 bar

Working pressure max

10 bar

Spring force max.

35 N

Max. permissible radial bearing load

3720 N

Max. permissible radial bearing load F during switching operation

570 N

Medium

Compressed air

Min. medium temperature

-20 °C

Max. medium temperature

80 °C

Max. particle size

50 µm

Oil content of compressed air max.

5 mg/m³

Piston rod

Stainless Steel

Material, front cover

Aluminum
