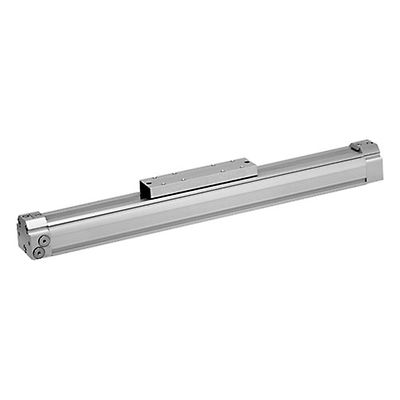

AVENTICS™ Rodless cylinders, Series RTC-BV R481608173

Piston Ø

32 mm

Stroke

300 mm

Ports

G 1/8

Functional principle

double-acting

Magnetic piston

with magnetic piston

Guide

integrated guide

Version rodless cylinder

Basic Version

Piston force

507 N

Pressure for determining piston forces

6,3 bar

Cushioning length

20 mm

Cushioning energy

7 J

Cushioning

Pneumatically

Cushioning

adjustable

Speed max.

0.8 m/s

Stroke max.

9900 mm

Working pressure min.

2 bar

Working pressure max

8 bar

Min. ambient temperature

-25 °C

Max. ambient temperature

60 °C

Medium

Compressed air

Oil content of compressed air min.

0 mg/m³

Oil content of compressed air max.

1 mg/m³

Max. particle size

5 µm

Weight 0 mm stroke

1.39 kg

Weight +10 mm stroke

0.031 kg
