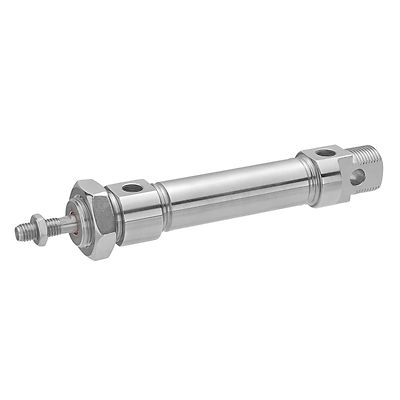

AVENTICS™ Stainless Steel Round Cylinder, Series CSL-RD R481624700

Standards

Based on ISO 6432

Piston Ø

32 mm

Stroke

80 mm

Ports

G 1/8

Functional principle

Double-acting

Cushioning

Elastic cushioning

Magnetic piston

Piston with magnet

Environmental requirements

Industry standard, suitable for use in food processing, ATEX optional

Piston rod

single

Cylinder special features

Version: standard type

Scraper

Food-Grade Scraper

Pressure for determining piston forces

6,3 bar

Retracting piston force

435 N

Extracting piston force

505 N

Min. ambient temperature

-20 °C

Max. ambient temperature

80 °C

Working pressure min.

1 bar

Working pressure max

10 bar

Piston rod thread

M10x1,25

Impact energy

0.5 J

Weight 0 mm stroke

0.699 kg

Weight +10 mm stroke

0.015 kg

Stroke max.

1200 mm

Medium

Compressed air

Min. medium temperature

-20 °C
