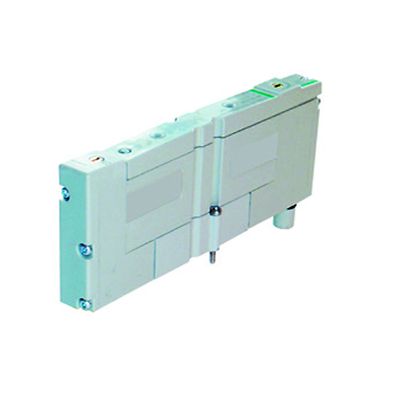

AVENTICS™ R501A2B10MA00F1

Activation

Electrically

Valve function

NC/NO

Actuating control

Single Solenoid

Manual override

without detent

Pilot

External

Nominal flow Qn

405 l/min

Working pressure min.

2 bar

Working pressure max

8 bar

Operational↩voltage

24 V DC

Voltage tolerance DC

-15% / +10%

Protection class with connection

IP65

Reverse polarity protection

Protected against polarity reversal

Sealing principle

soft seal

Power consumption DC

0.68 W

Duty cycle

100 %

Typ. switch-on time

14 ms

Typ. switch-off time

29 ms

Min. ambient temperature

-10 °C

Max. ambient temperature

50 °C

Weight

0.93 kg

Housing material

Die cast zinc
