화염 감지 기술 소개
가연성 위험 모니터링 요구에 알맞은 제품을 알아내는 방법.
가연성 위험 모니터링 요구에 알맞은 제품을 알아내는 방법.
화염은 연료원에 따라 적외선(IR), 가시광선 및 자외선(UV) 파장으로 전자기 방사선을 방출합니다. 일부 화염은 사람의 눈에 보이지 않기 때문에 오늘날의 화염 감지기는 광학 기술을 사용하여 화염을 감지합니다. 광학 화염 감지 기술은 UV, UV/IR 및 다중 스펙트럼 적외선을 활용하여 다양한 연료 공급원의 화염을 감지하도록 개발되었습니다. 이러한 화염 감지 제품은 화염이 실제인지 확인하기 위해 스펙트럼 대역에서 방출되는 방사선의 가시광선 감지에 의존합니다.

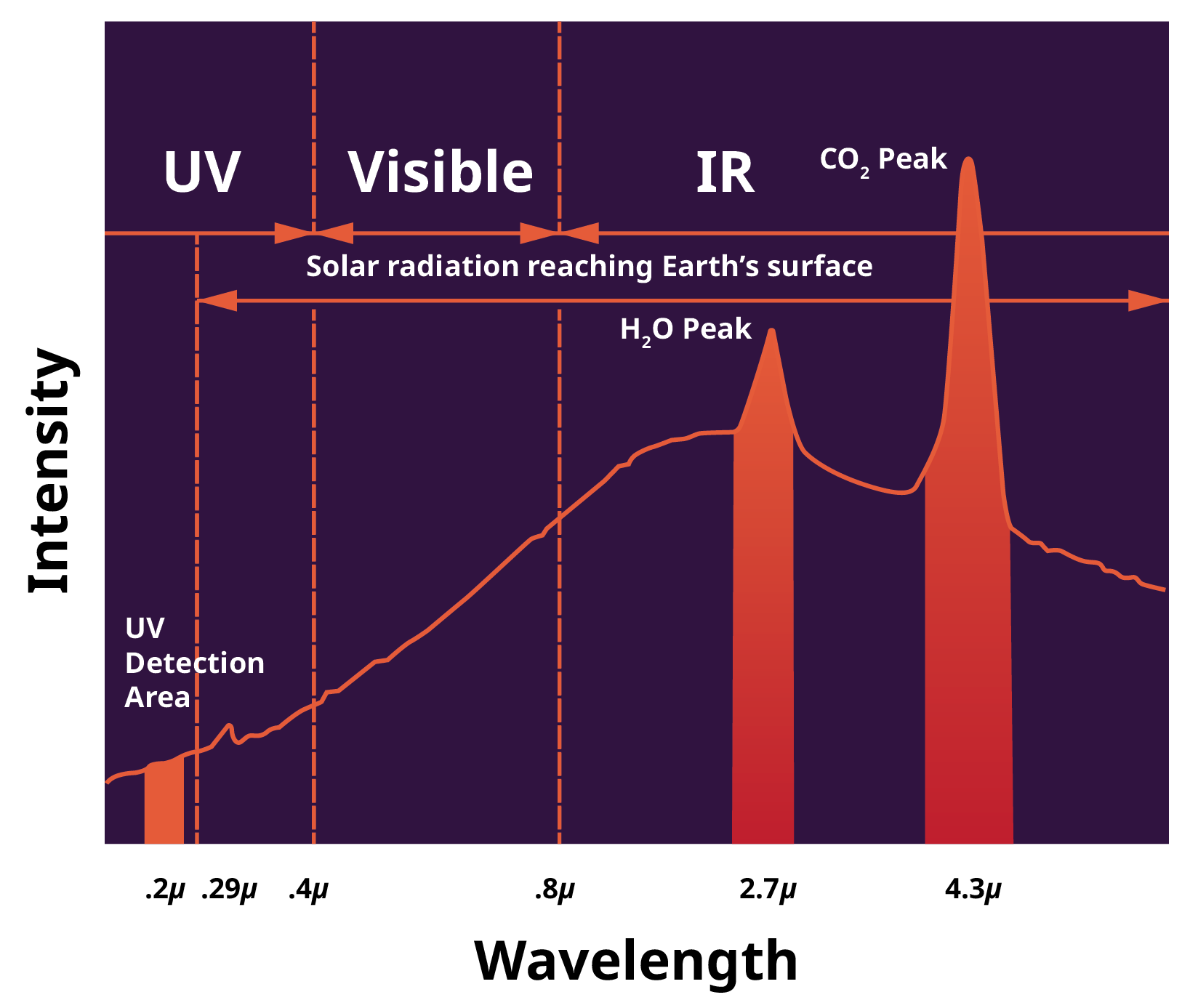

감지하려는 잠재적 화염이 탄화수소 기반인지 무기 물질인지 고려하십시오. 탄화수소 화염의 경우 메탄과 산소가 결합되어 이산화탄소와 물이 생성됩니다. 이 유형의 화재가 발생하면 UV 신호 측정값은 0.2미크론이며 IR 신호 측정값은 2.7 미크론과 4.5미크론이 됩니다. 수소 화염은 물 분자만 생성하므로 탄화수소 화염에서 생성하는 것으로 알려진 것과 동일한 CO2 피크는 확인할 수 없습니다.
일광, 조명, 뜨거운 물체 및 기타 비화염원 등이 있는 환경 조건에서 허위 알람이 발생할 수 있습니다. 화염 감지기가 실제 화재와 허위 방사선원을 구분할 수 있는 것은 매우 중요합니다.
화염 감지 기술을 사용하면 여러 다른 거리에 있는 화염을 효과적으로 인지할 수 있습니다. 필수 감지 범위 내에서 작동할 수 있는 감지기를 활용하는 것이 중요합니다.

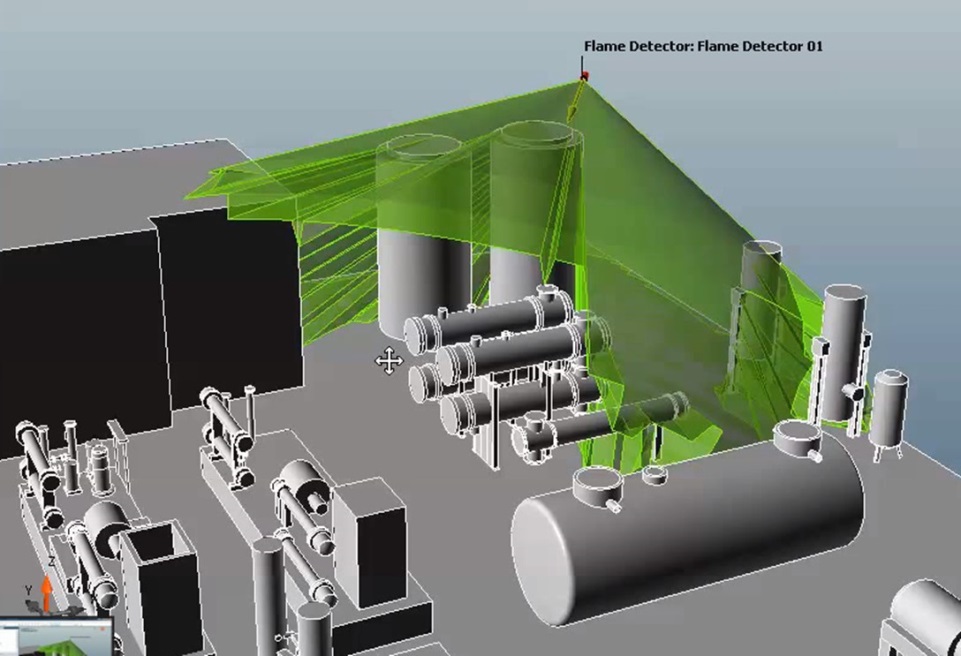

광학 화염 감지기에는 카메라 렌즈와 비슷한 “시계” 범위가 제공됩니다. 시계 범위를 고려하면 설비 또는 설비 내 특정 영역에 포함해야 할 감지기 수를 판별하는 데 도움이 됩니다.
Optical Flame Detection for the Process Industry

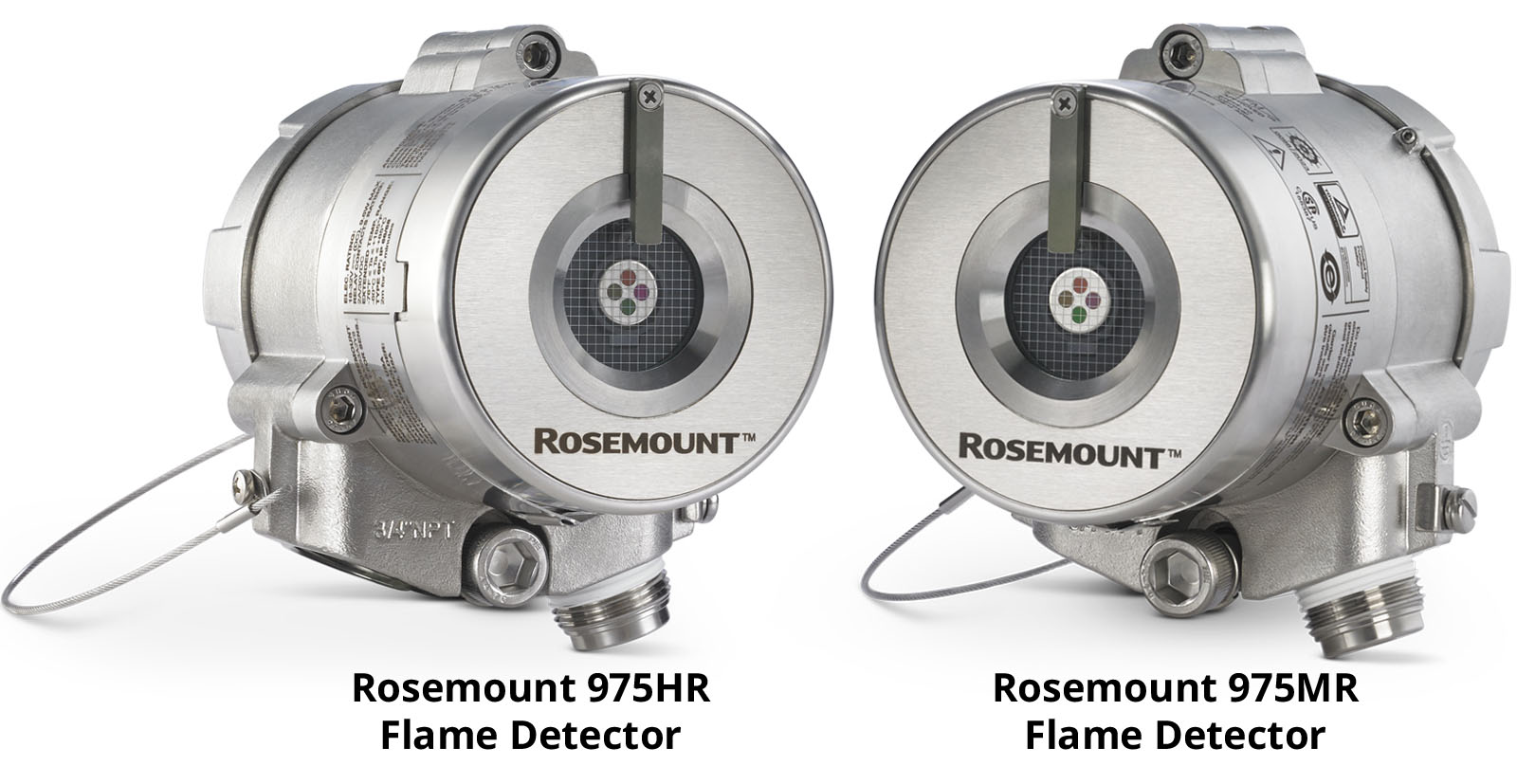

There's no such thing as "too safe" when operating storage tank farms, especially when these tank farms are located near urban areas. Next generation Rosemount 975 Flame Detectors help detect fires in tank farms to keep your operation running smoothly and safely. A full fire prevention solution helps ensure more uptime, extended asset life and minimized operating costs. Avoid devastating results of personnel injuries and equipment damage.
Oil wells have the potential to create flammable vapors and gases, increasing the risk of fire or explosions which can occur without warning. Next generation Rosemount 975 Flame Detectors provide continuous flame detection even in extreme temperatures and harsh winds to keep personnel and equipment safe.
Various hazards are associated with loading and unloading flammable and toxic products, including accidental release and potential of ignition. Next generation Rosemount 975 Flame Detectors continuously provide ultra-fast flame detection response speeds - as low as 20 ms – to help protect personnel and equipment
Due to the constant high stress on compressor machinery and potential for fires, compressor stations require continuous flame monitoring. Next generation Rosemount 975 Flame Detectors detect fires with ultra-fast response speeds as low as 20 milliseconds.
Aircraft hangars come with unique challenges as highly combustible aviation fuel leaks can occur. Next generation Rosemount 975 Flame Detectors help protect personnel and costly equipment, by detecting fuel and gas fires at long distances and over wide areas. Flame detectors are installed at the structure's corner and at ground level to help ensure the detectors' field of view covers any area where fire may occur.
Food and beverage processing and storage facilities present unique safety risks. Next generation Rosemount 975 Flame Detectors protect personnel and equipment, detecting fires with a high immunity to false alarms. With a durable stainless steel body and heated optics to eliminate condensation and icing, operating temperatures range from -76 °F to +185 °F (-60 °C to +85 °C) and cover areas up to 300 ft. (90 m).
Fire is a constant possibility at waste management sites as many types of waste are readily combustible. Next generation Rosemount 975 Flame Detectors continuously monitor and quickly detect fires, while protecting personnel and equipment. Rosemount 975 Flame Detectors detect fires at long distances and over wide areas with a high immunity to false alarms and ultra-fast response speeds - as low as 20 milliseconds. Flame detectors are strategically installed in multiple locations, ensuring the detectors' field of view covers any area where a fire may occur.
